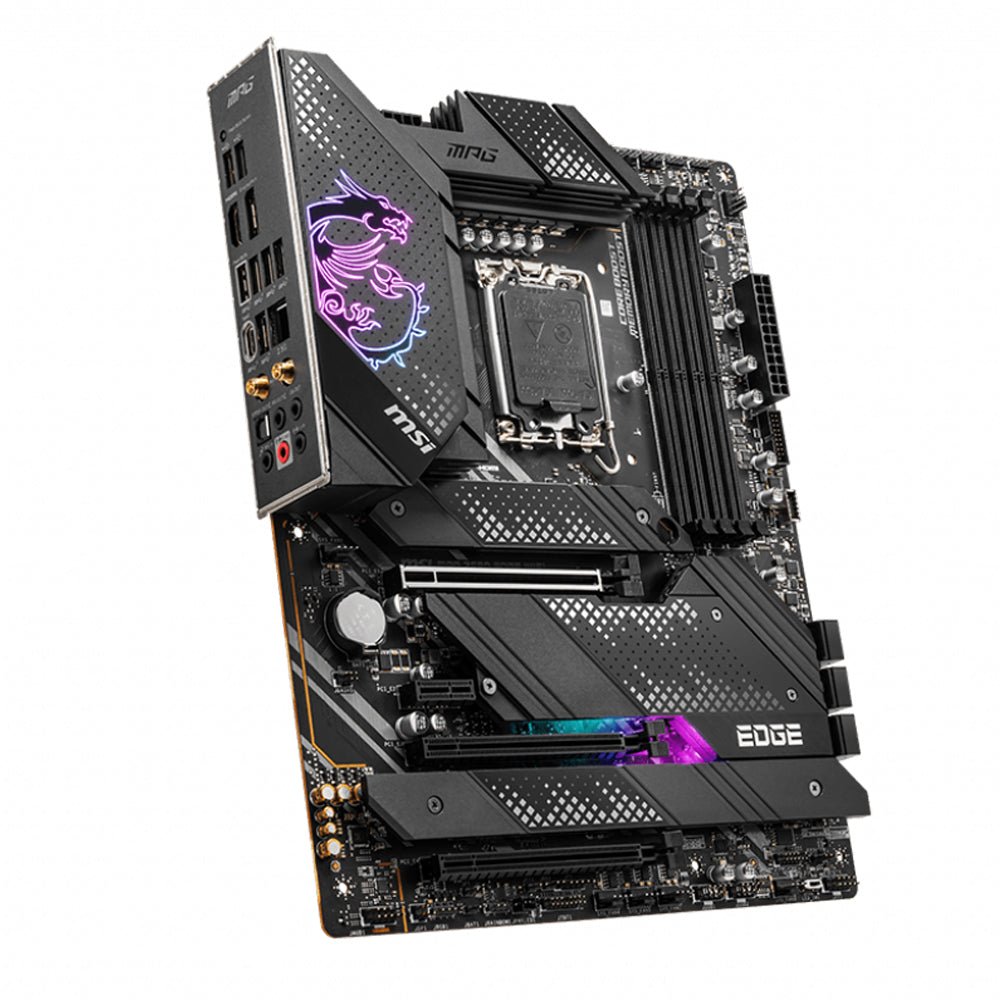

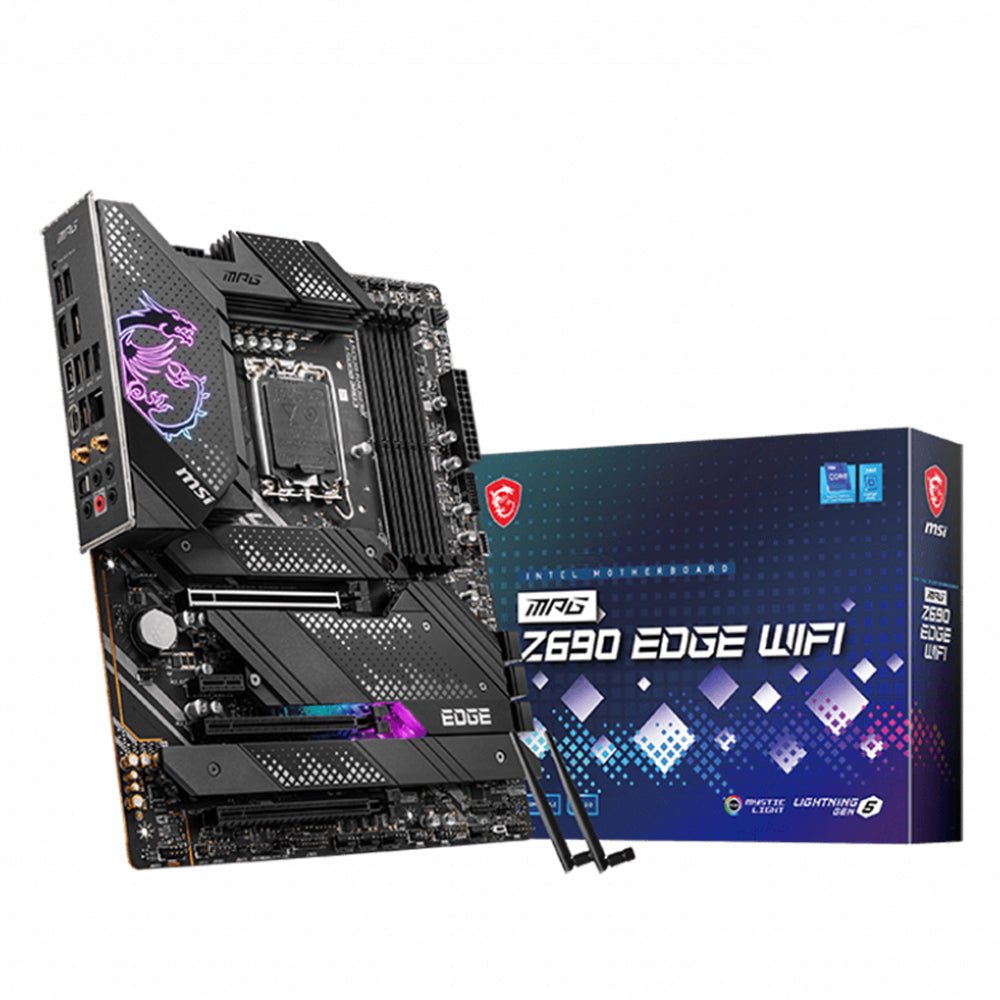

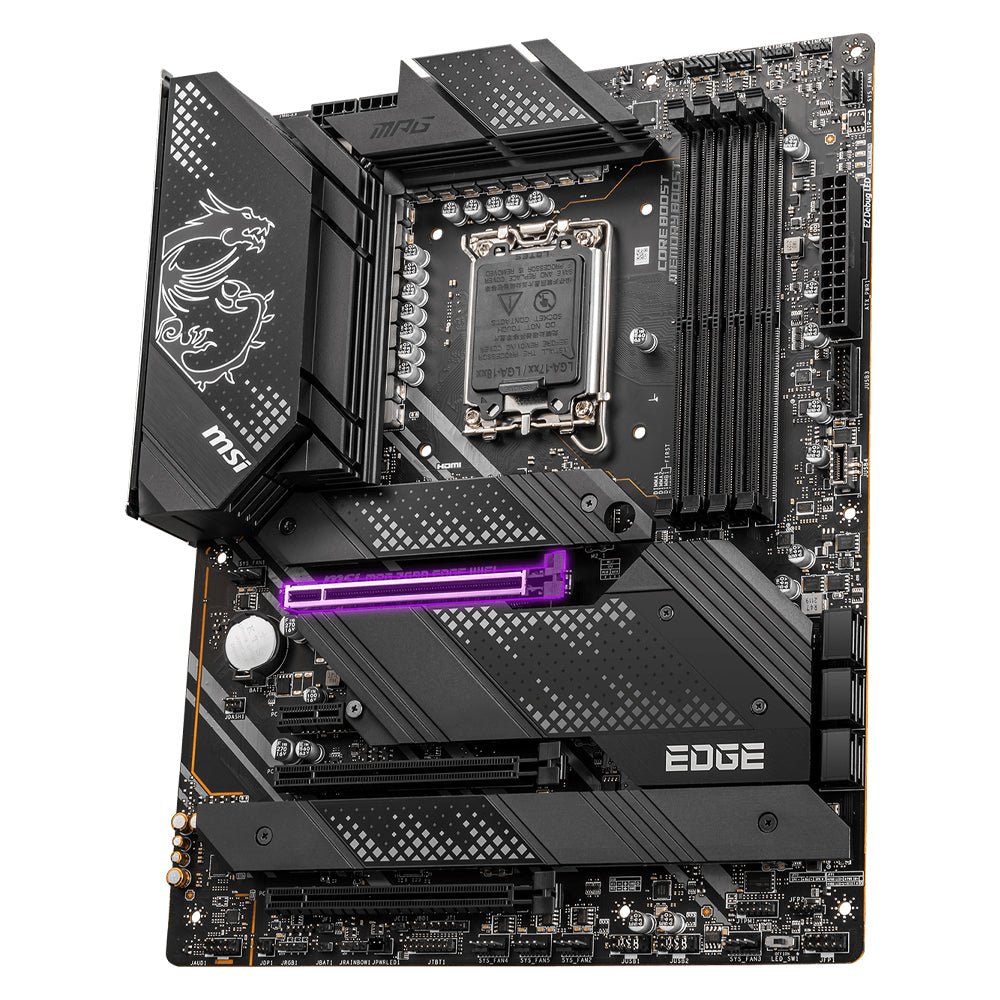

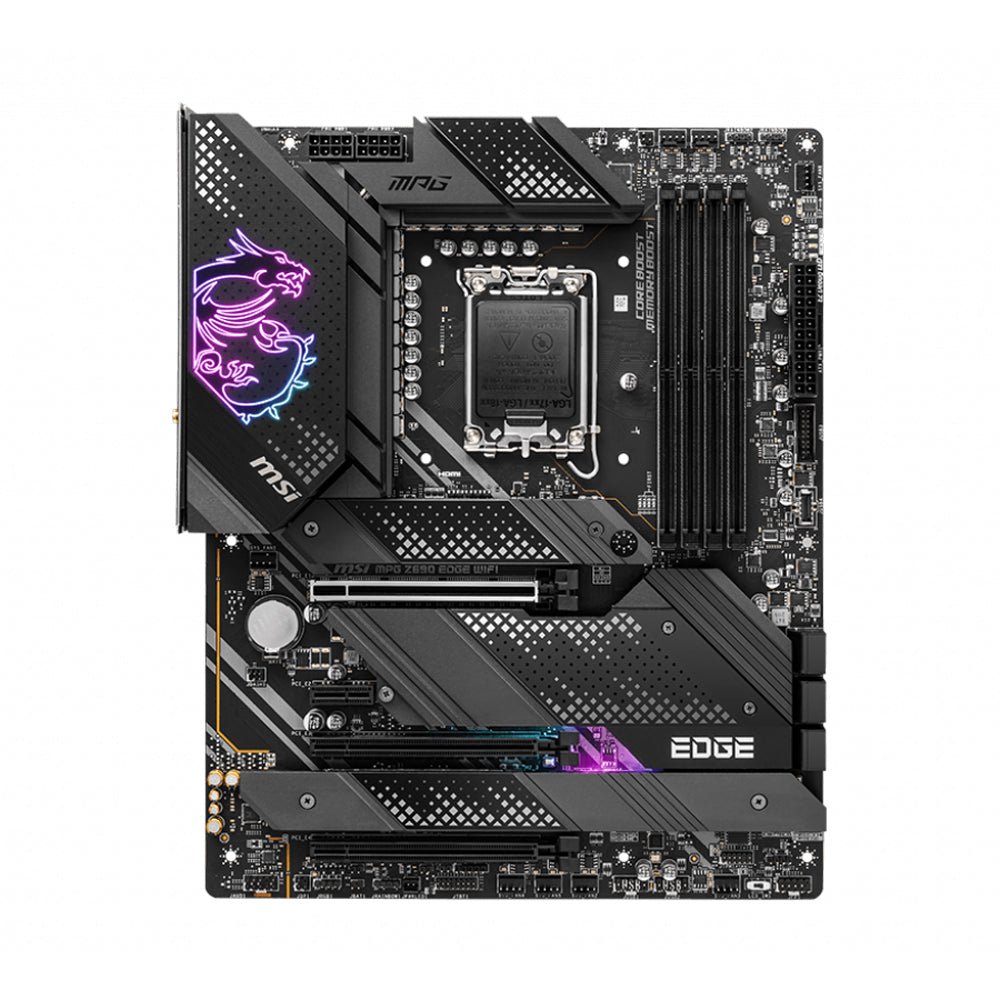

MSI MPG Z690 EDGE WIFI DDR5 Intel Z690 LGA 1700 ATX Motherboard with PCIe 5.0 and 4 M.2 Slot
MSI MPG Z690 EDGE WIFI DDR5 Intel Z690 LGA 1700 ATX Motherboard with PCIe 5.0 and 4 M.2 Slot - Image 2
MSI MPG Z690 EDGE WIFI DDR5 Intel Z690 LGA 1700 ATX Motherboard with PCIe 5.0 and 4 M.2 Slot - Image 3
MSI MPG Z690 EDGE WIFI DDR5 Intel Z690 LGA 1700 ATX Motherboard with PCIe 5.0 and 4 M.2 Slot - Image 4
MSI MPG Z690 EDGE WIFI DDR5 Intel Z690 LGA 1700 ATX Motherboard with PCIe 5.0 and 4 M.2 Slot - Image 5
MSI MPG Z690 EDGE WIFI DDR5 Intel Z690 LGA 1700 ATX Motherboard with PCIe 5.0 and 4 M.2 Slot - Image 6

MSI MPG Z690 EDGE WIFI DDR5 Intel Z690 LGA 1700 ATX Motherboard with PCIe 5.0 and 4 M.2 Slot

Original price was: ₹44,000.00.Current price is: ₹28,000.00.

20 in stock

Cash on Delivery

Cash on Delivery is available for most of the products. However, we may sometimes ask for a small advance payment while confirming the order.

10 Days Return

You can return the product & get a new replacement if the product is received in defective / damaged condition.

Free Fast Delivery

We are glad to provide free shipping throughout India.

100% Secure Payment

We are using the best payment gateway “Razorpay” for safe & secure and hassle-free payments.

Genuine Manufacturer Warranty

All products sold through our website come with a manufacturer’s warranty & we provide GST invoice for every order. To know the warranty period, please check in the product specification.

Excellent Customer Support

We are available on WhatsApp / Phone: 8122581225, and Email: hello@thevaluestore.in

Description

  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400+(OC) MHz
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
  • Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation.

Model MPG Z690 EDGE WIFI
CPU Support Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
CPU Socket LGA 1700
Chipset Intel Z690 Chipset
Form Factor ATX
Memory 4x DDR4 memory slots, 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/
5800(OC)/5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/
5066(OC)/5000(OC)/ 4800(JEDEC) MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Graphics 1x HDMI 2.1 with HDR port
1x DisplayPort 1.4 port
Graphics Interface 1x PCIe 5.0 x16 slots
2x PCIe 3.0 x16 slots
LAN 1x Intel I225-V 2.5G LAN
WIFI and Bluetooth Intel Wi-Fi 6E module, Bluetooth 5.2
Storage 4x M.2 Gen4 x4 64Gbps slots
6x SATA 6Gbps ports
Audio Realtek ALC4080 Codec
Multi-GPU Supports AMD CrossFire Technology

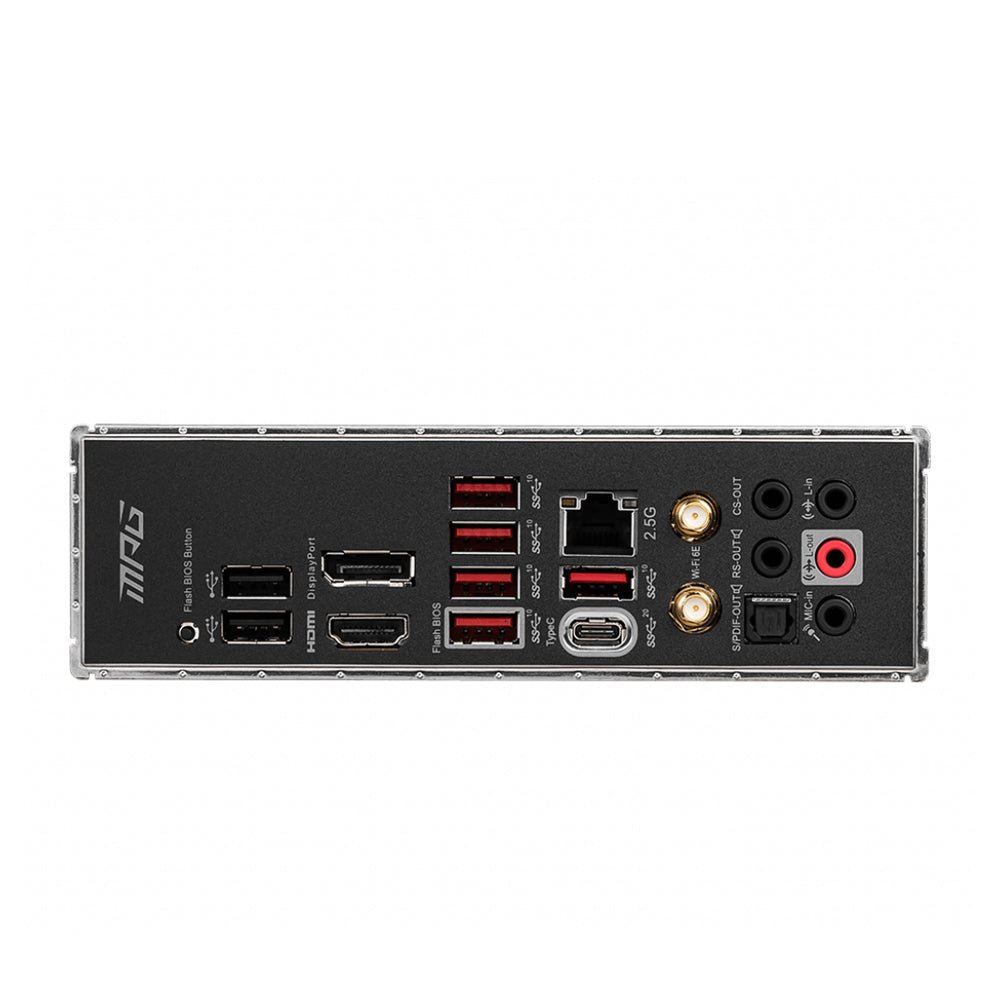

BackPanel Ports 1x Display port
1x HDMI
1x Flash BIOS Button
1x RJ45 LAN port
2 x Antenna Bracket
5x Audio connector
2x USB 2.0
5 x USB 3.2 Gen 2 Type-A
1 x USB 3.2 Gen 2×2 Type-C
1 x Optical S/PDIF Out
Internal I/O Connectors 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1 x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning controller connector
Operating System Support for Windows 11 64-bit, Windows 10 64-bit
LED 1x EZ LED Control switch
4x EZ Debug LED
1x 4-pin RGB LED connector
3x 3-pin RAINBOW LED connectors
Dimension 30.5 cm x 24.4 cm
Warranty 3 Years Brand Warranty

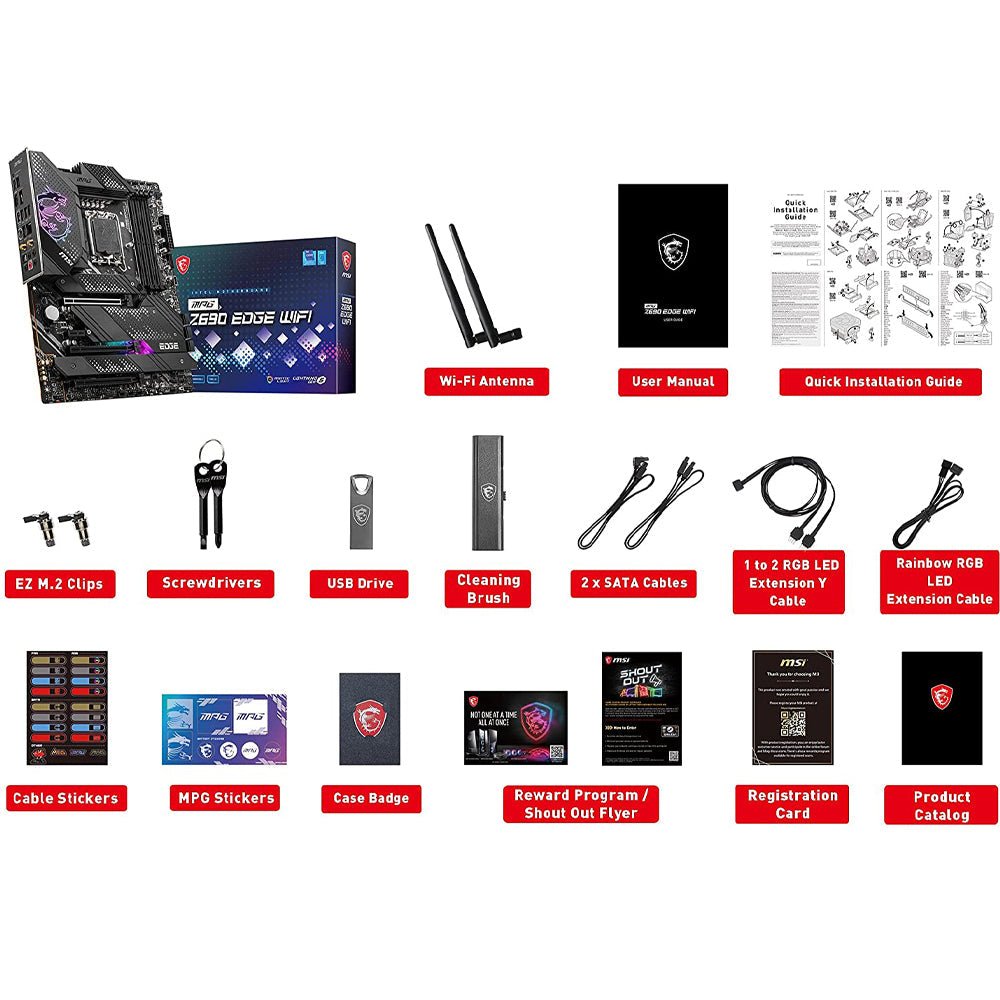

Package Contents MSI MPG Z690 EDGE WIFI ATX Motherboard
WI-FI Antenna
EZ M.2 Clips
Screwdrivers
2x SATA Cables
USB Drive
RGB LED Extension Cable
RAINBOW RGB LED Extension Cable
Cable Stickers
MPG Stickers
Cleaning Brush
MSI Case Badge
Registration Card
Installation Guide
