Description

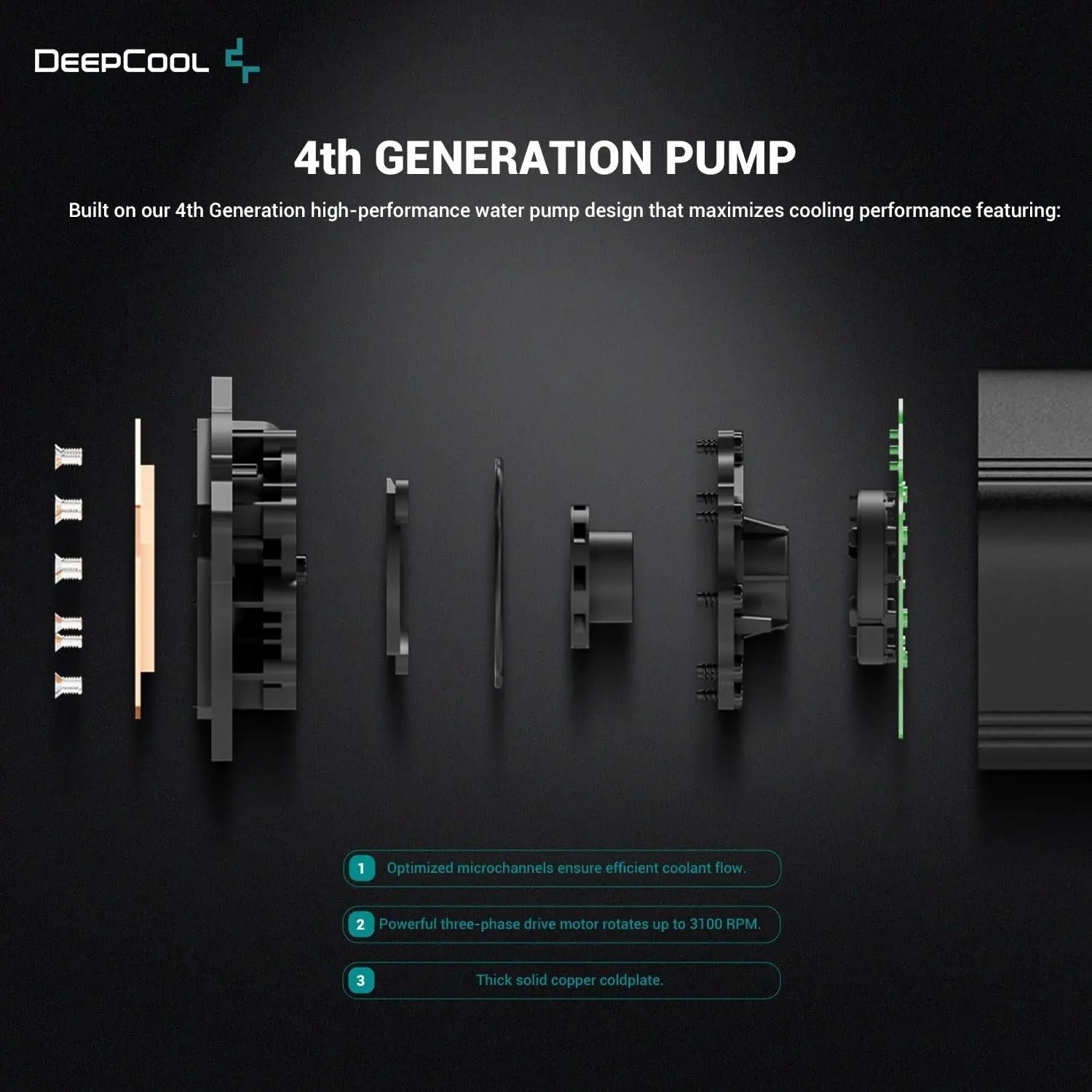

- Optimized microchannels ensure efficient coolant flow.
-
Powerful three-phase drive motor rotates up to 3100 RPM.
-
Thick solid copper coldplate.
500~2250 RPM
| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Pump Dimensions | 85×73×55 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Details | Connector – 3-pin Voltage – 12 VDC Current – 0.5A Power Consumption – 6W |
| Tube length | 410 mm(L×W×H) |
| Fan Speed | 500~2250RPM±10% 500~1600 RPM±10% (with LSP) |
| Fan Airflow | 85.85 CFM 60.85 CFM (with LSP) |
| Fan Air Pressure | 3.27 mmAq 1.65 mmAq (with LSP) |
| Fan Noise | ≤32.9 dB(A) ≤28.2 dB(A) (with LSP) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Details |
Voltage – 12 VDC Current – 0.25 A Power Consumption – 3.0 W |
| LED Type | White LED |
| Fan Dimensions |
120×120×25 mm
|
| Weight | 1659 g |
| Warranty | 3 Years |
