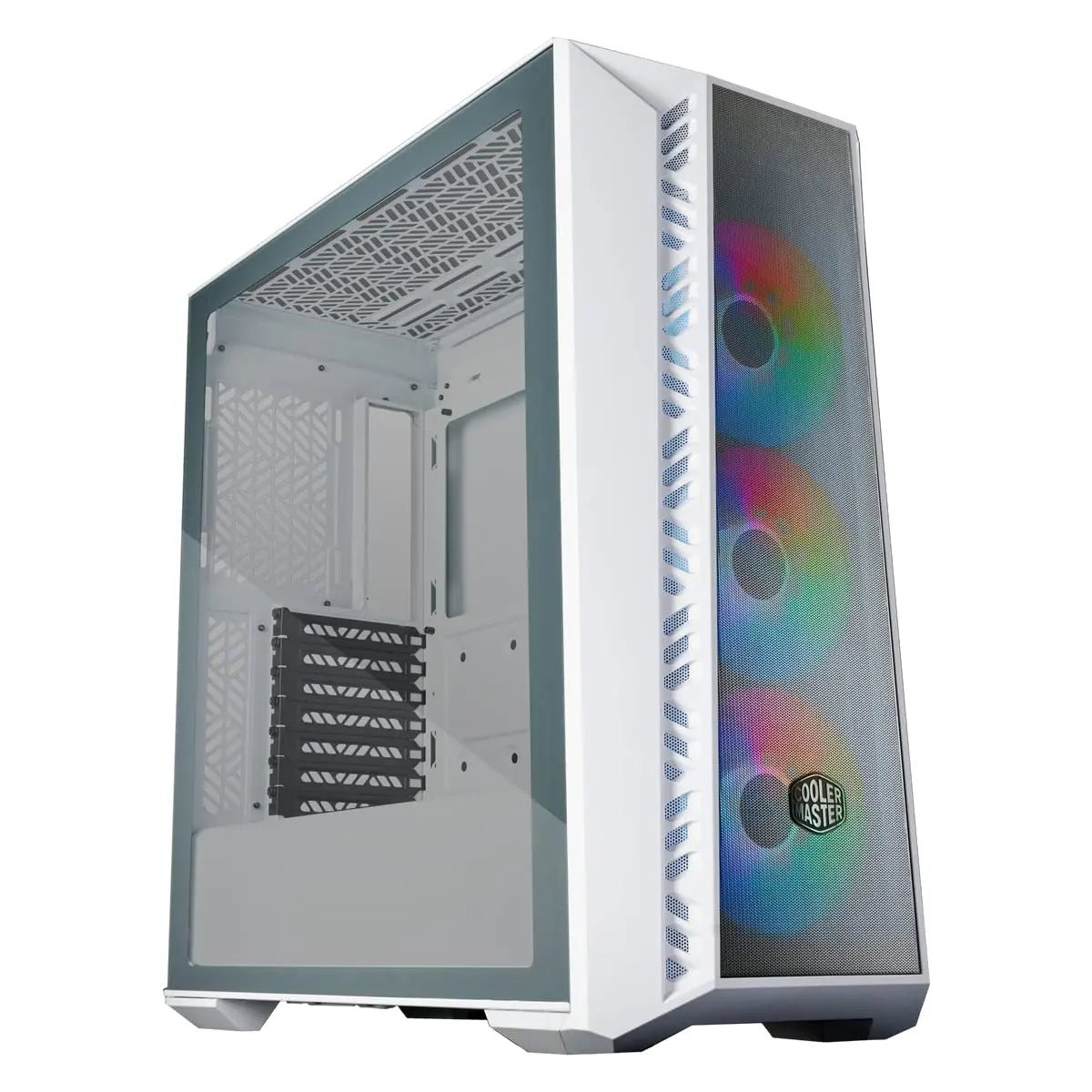

MasterBox 520 Mesh
MasterBox 520 Mesh is the ideal chassis for satisfying the needs of both novice and experienced gamers.

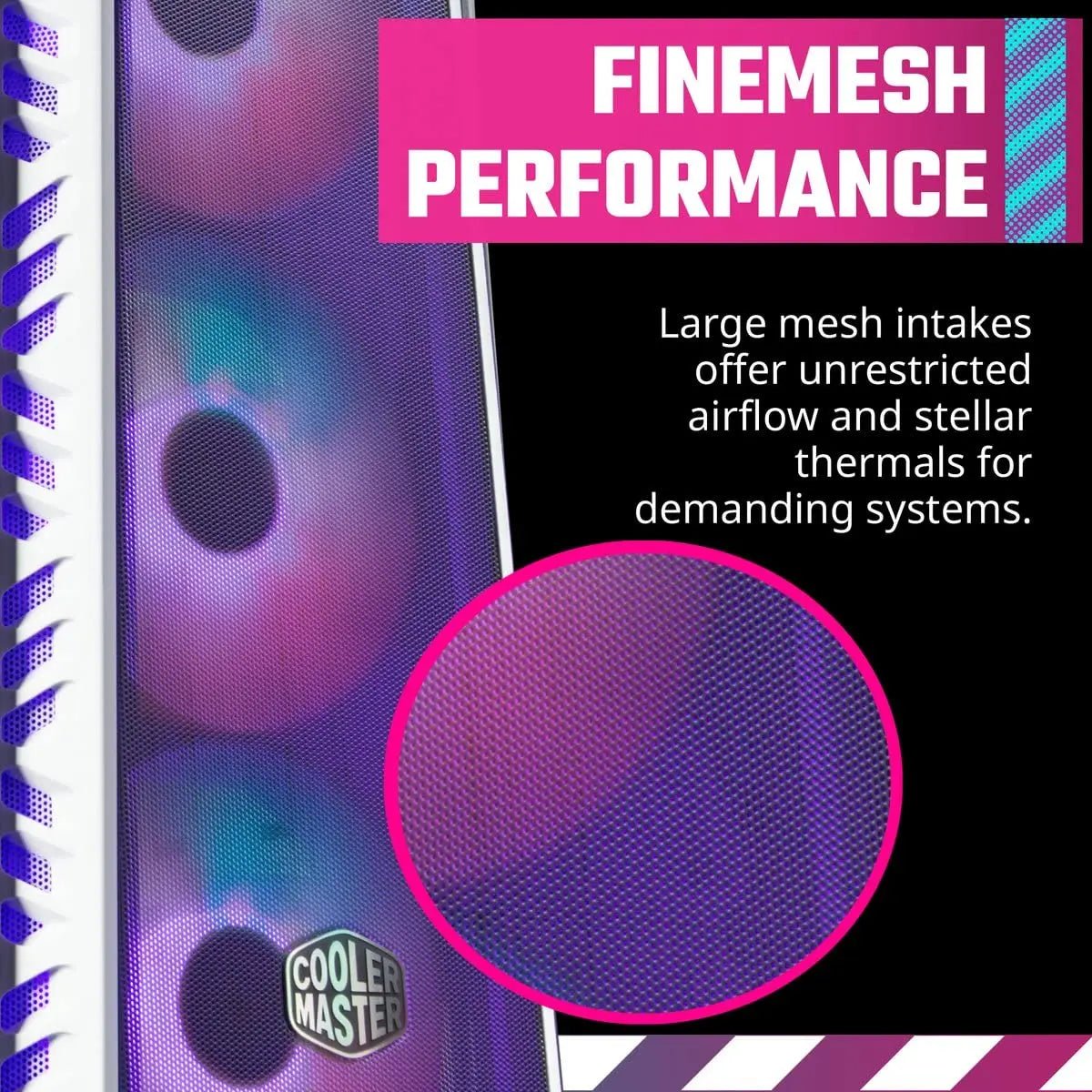

FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.

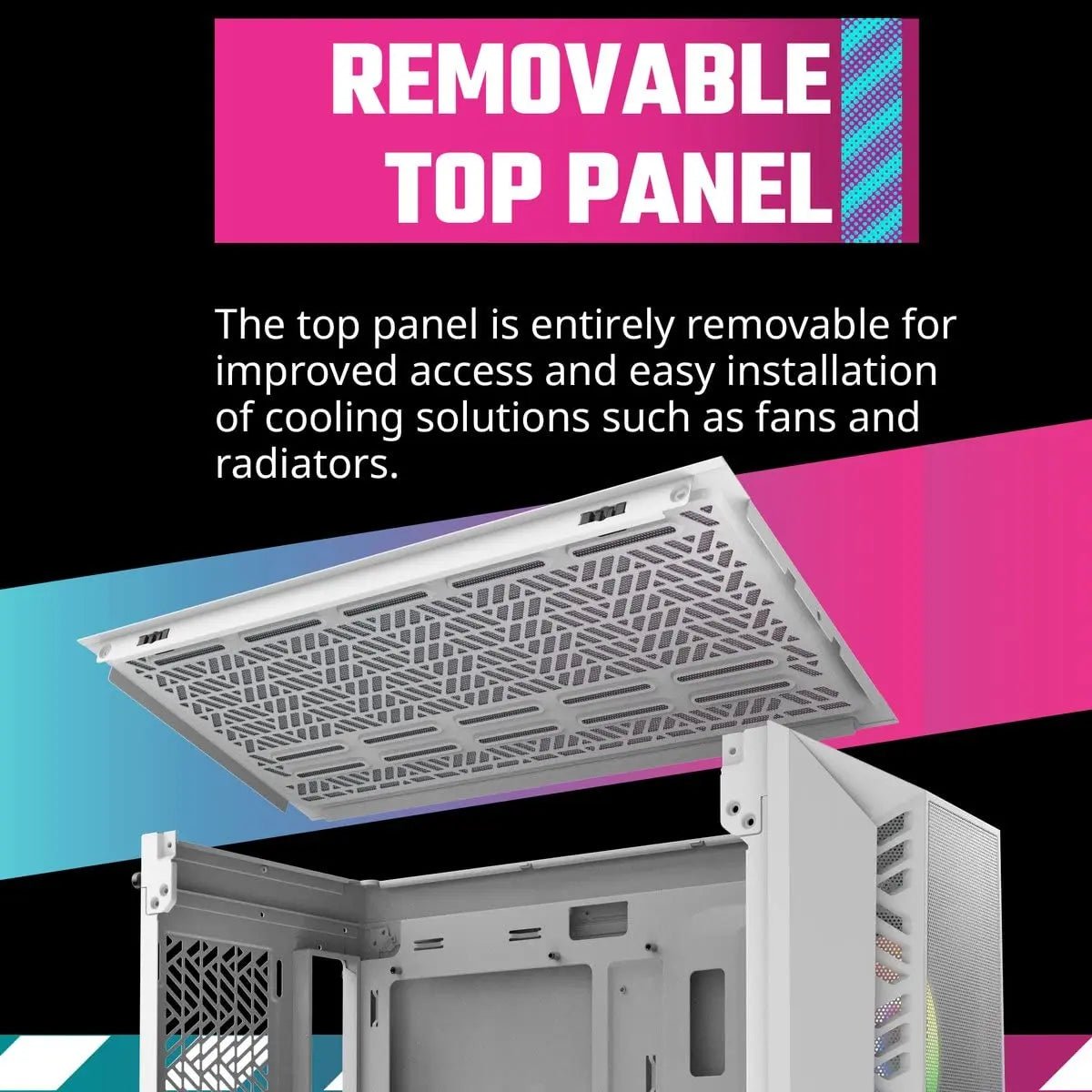

Removable Top Panel
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.

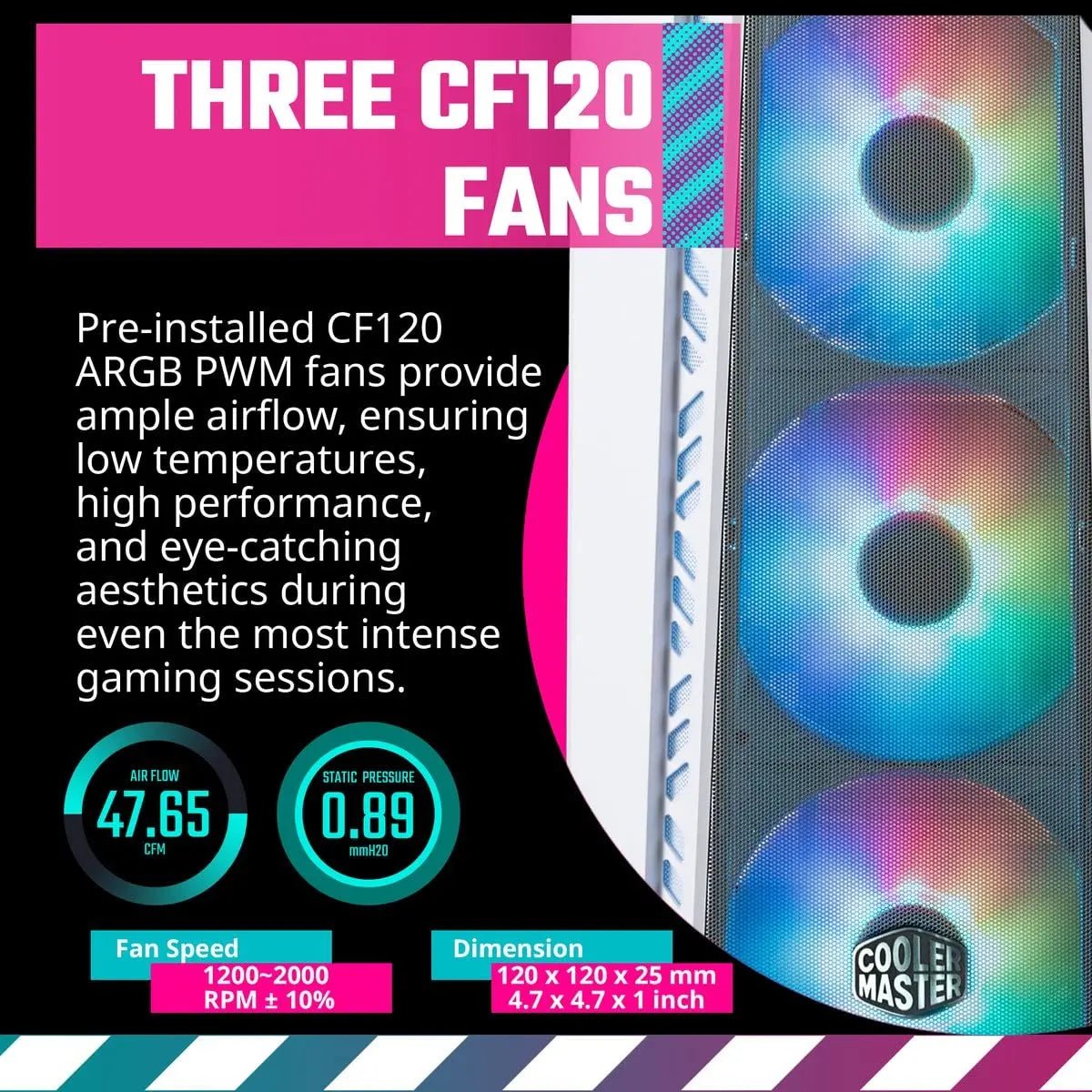

Three CF120 ARGB Fans Included
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

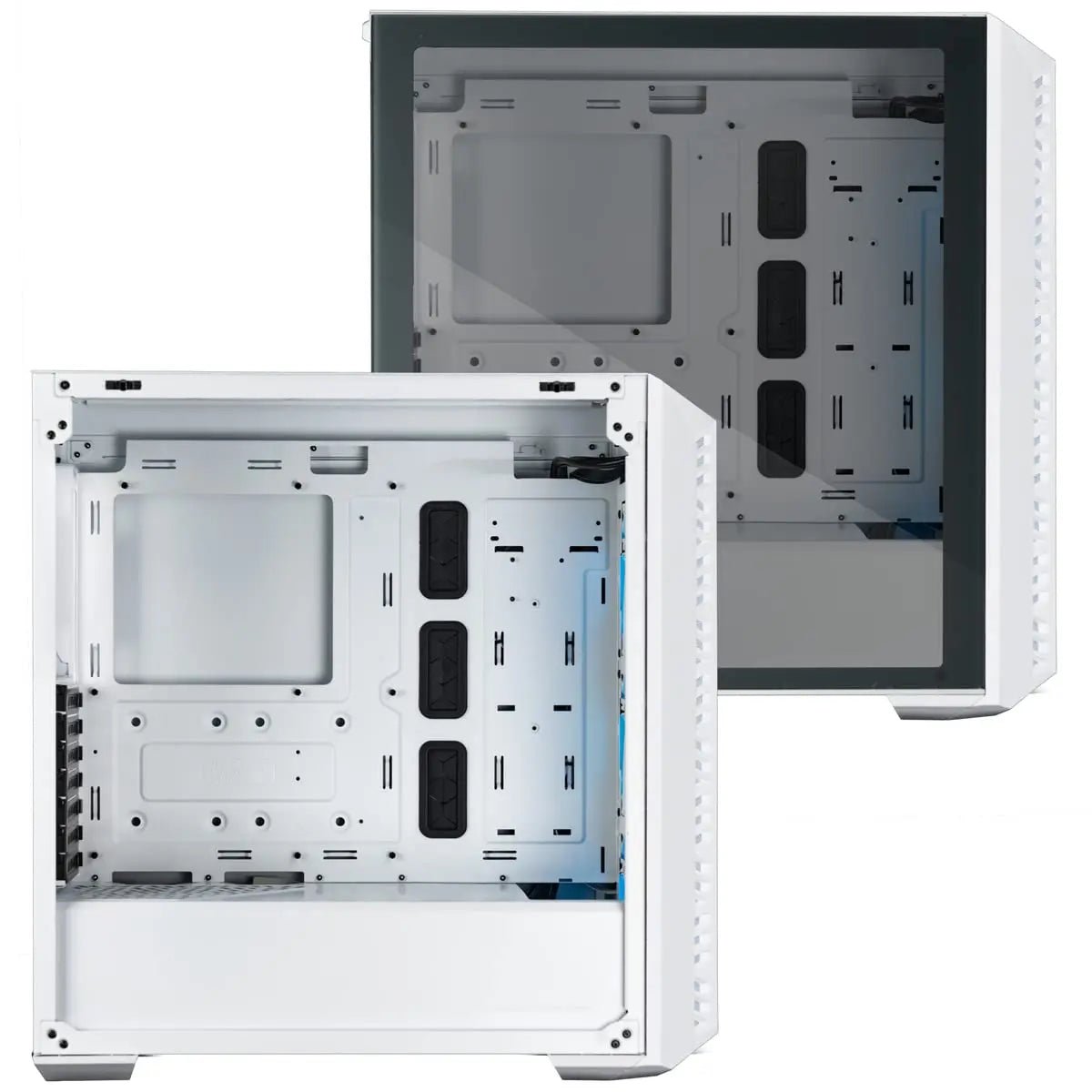

Screwless & Tool-Free TG Side Panel
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.

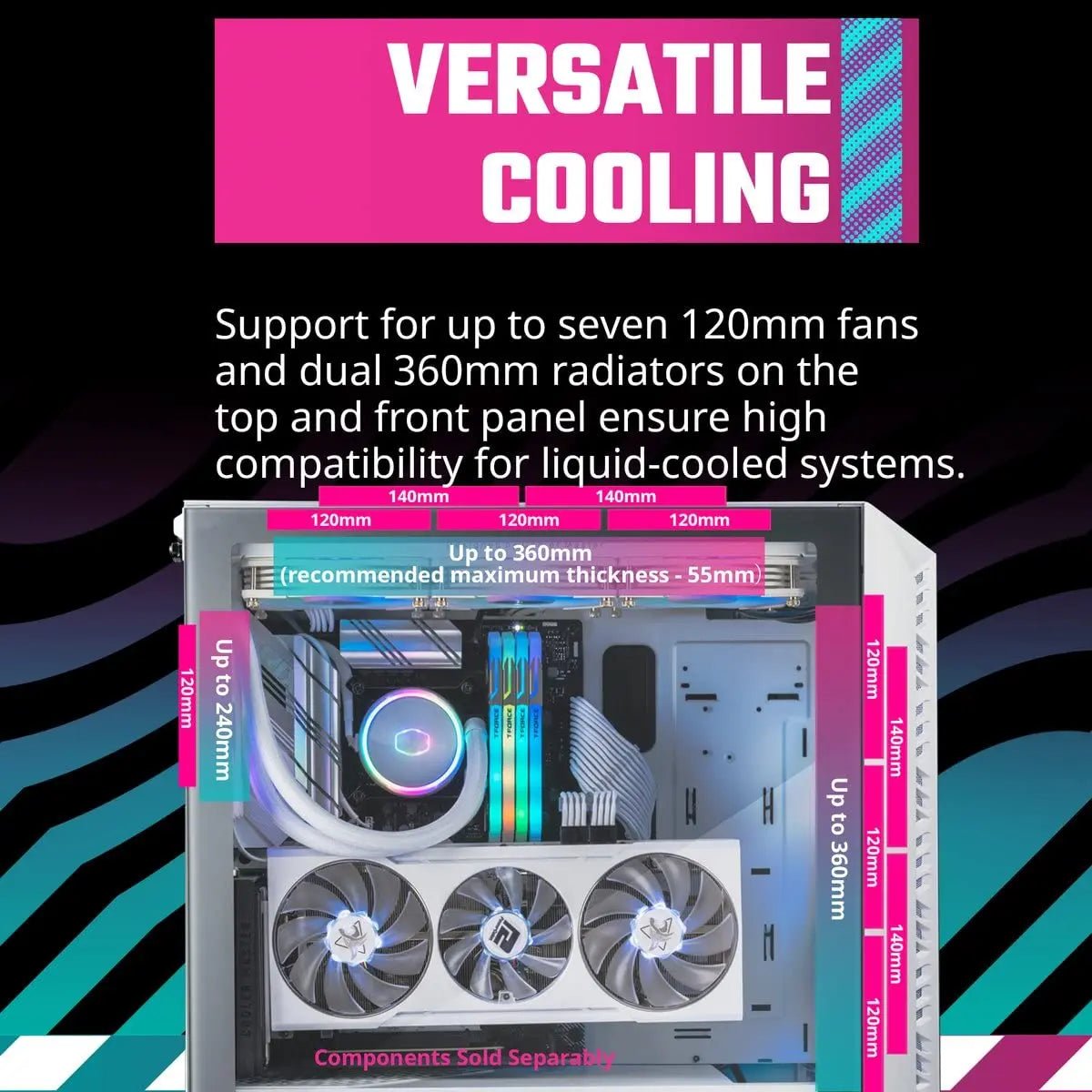

Versatile Cooling Options
Supports up to seven 120mm fans and dual 360mm radiators on the top 140mm and front panel.
Removable HDD Cage
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.

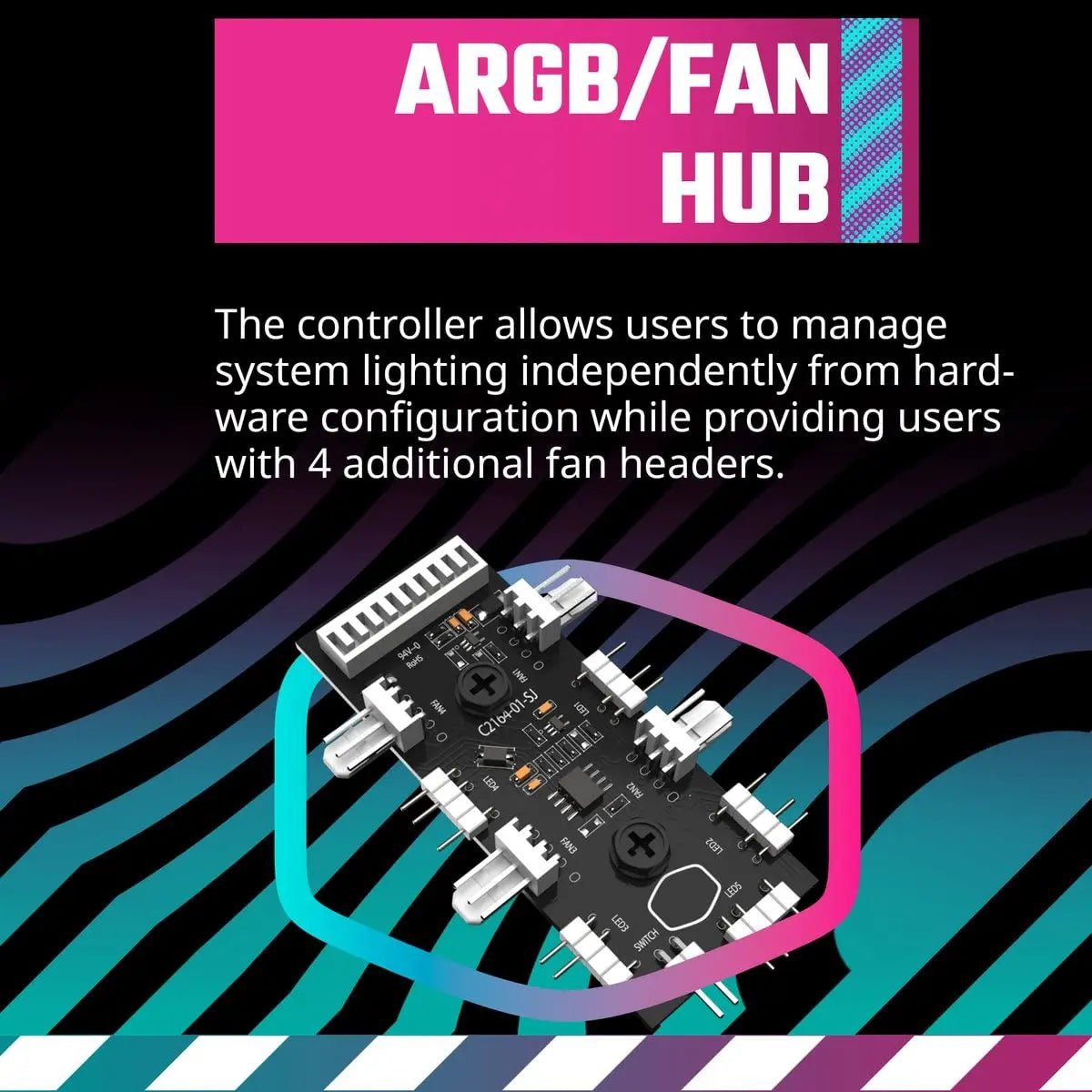

ARGB/ Fan Hub Included
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
Upgraded Removable Dust Filter Bracket
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
Rich Connectivity
The 1/0 panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.
Breathable Power Supply Shroud
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.
Hardware Compatibility

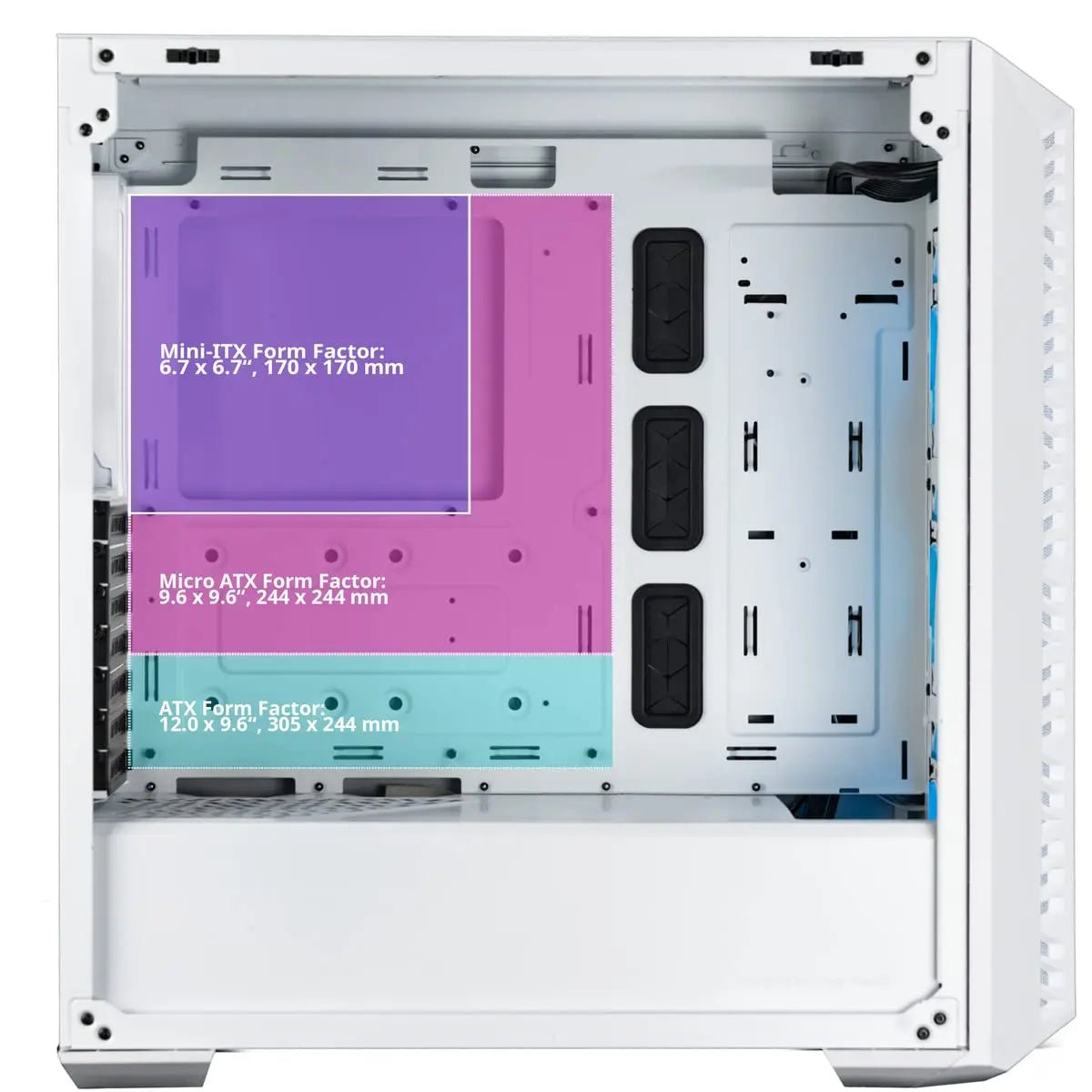

MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards. E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.
| Model | MB520-WGNN-S00 |
| Colour | White |
| Dimensions | 499 x 210 x 498mm (Incl. Protrusions) 430 x 210 x 479mm (Body size) |
| Form Factor | Mid-Tower |
| Materials | Steel,ABS Plastic and Tempered Glass |
| Mainboard Support | Mini ITX Micro ATX ATX SSI-CEB E-ATX |
| I/O Ports | 1 x USB 3.2 Gen1 Type-A 1x USB 3.2 Gen2 Type-C 1x RESET/ARGB button 1x 3.5mm Headset Jack (Audio + Mic) |
| Side Panel | Tempered Glass |
| Expansion and Drive Bays | |
| Expansion Slots | 7 |
| 3.5 Inch HDD | 2 |
| 2.5 Inch SSD | 3 |
| Fan Support | |
| Front | 3x 120mm, 2x 140mm |
| Top | 2x 120mm, 2x 140mm |
| Rear | 1x 120mm |
| Included Fan | Front :3x CF120 ARGB |
| Radiator Support | |
| Front | 120mm, 140mm, 240mm, 280mm, 360mm |
| Top | 120mm, 140mm, 240mm, 280mm, 360mm(recommended maximum thickness – 55mm |
| Rear | 120mm |

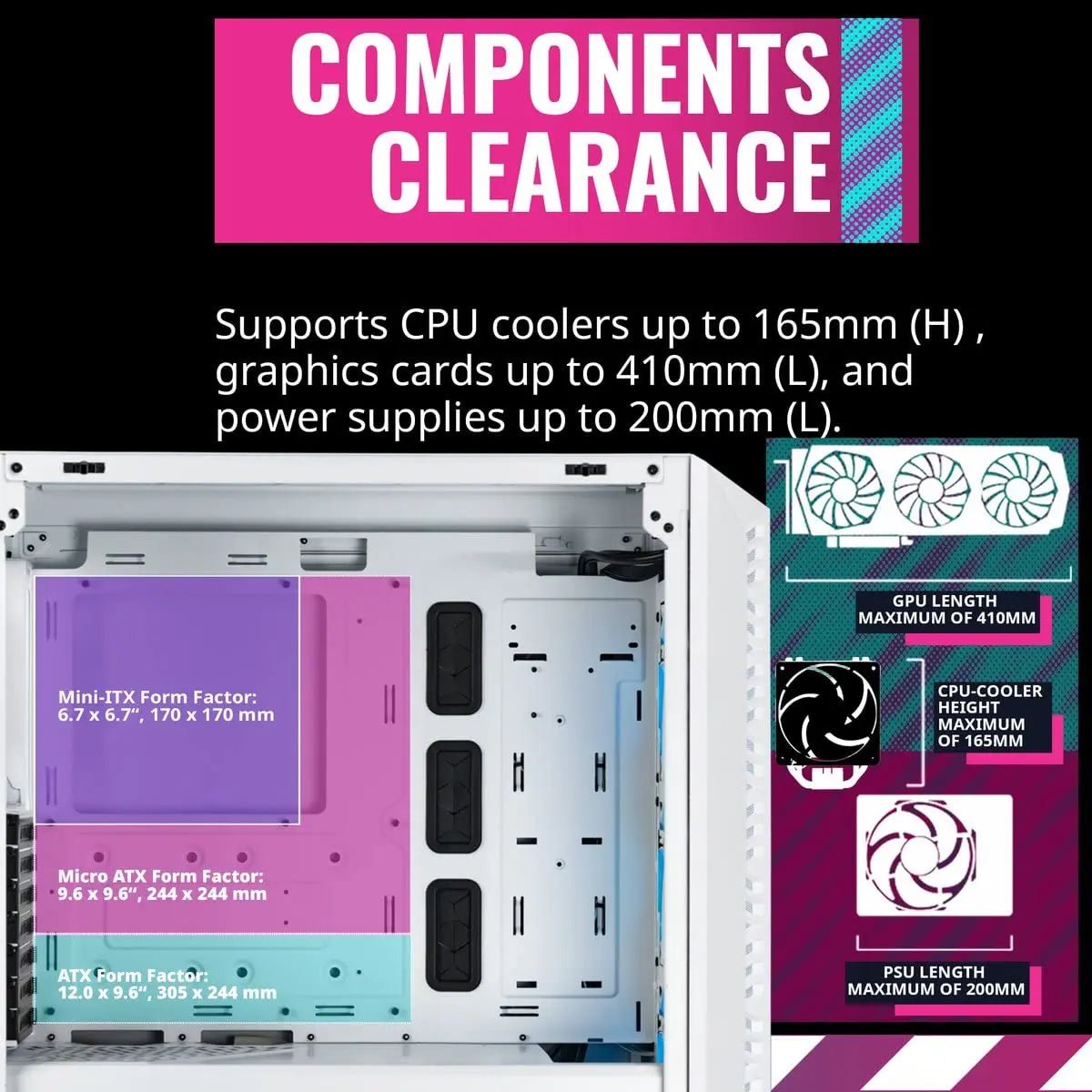

| Clearance | |
| Max GPU Length | 410mm |
| Max CPU Cooler Height | 165mm |
| Max PSU Height | 200mm |
| Graphics Card | 410mm |
| Miscellaneous | |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | ATX |
| Warranty | 2 Years of Brand Warranty |
