Description

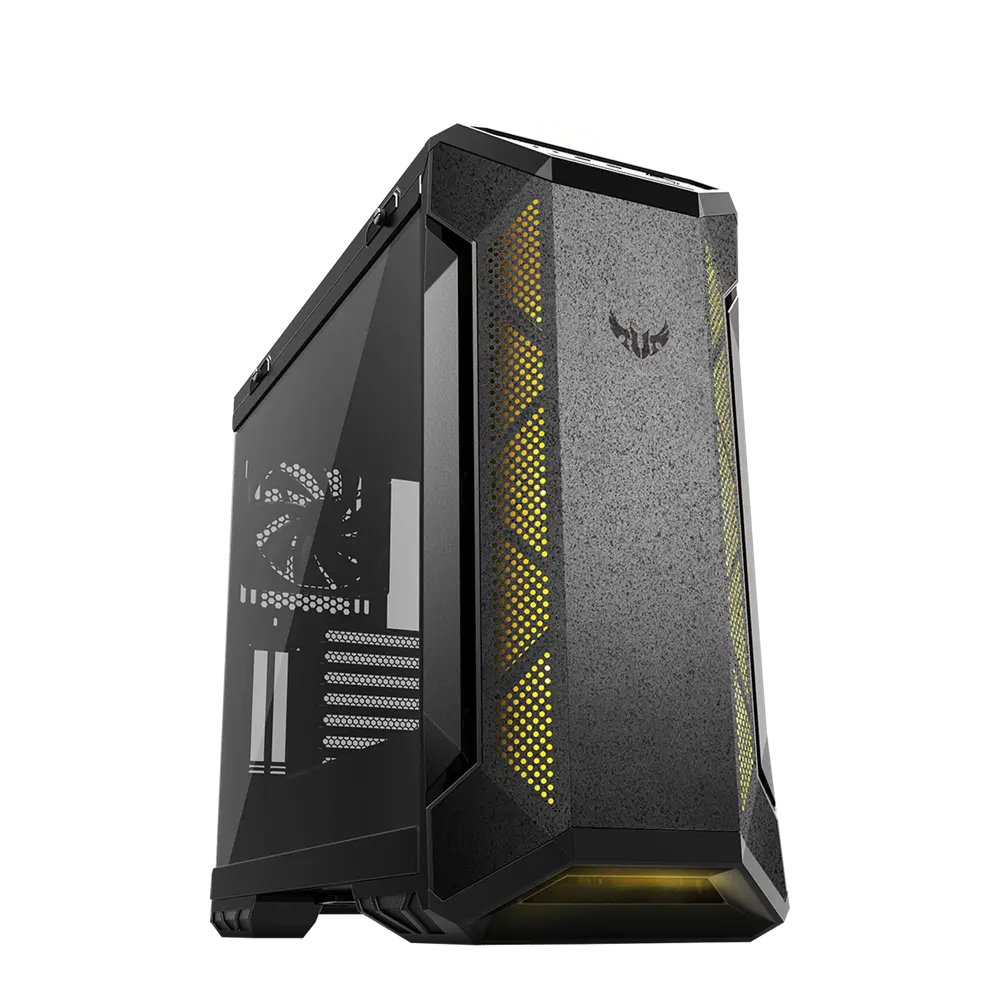

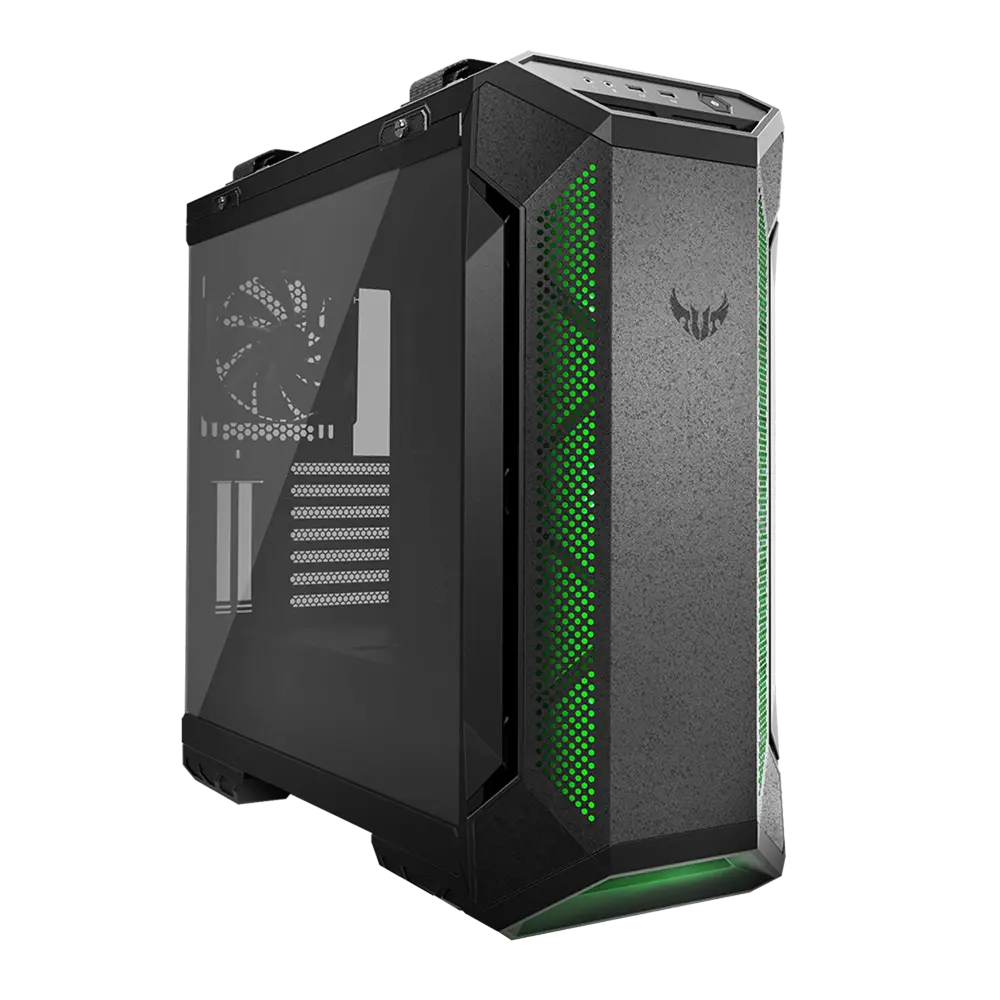

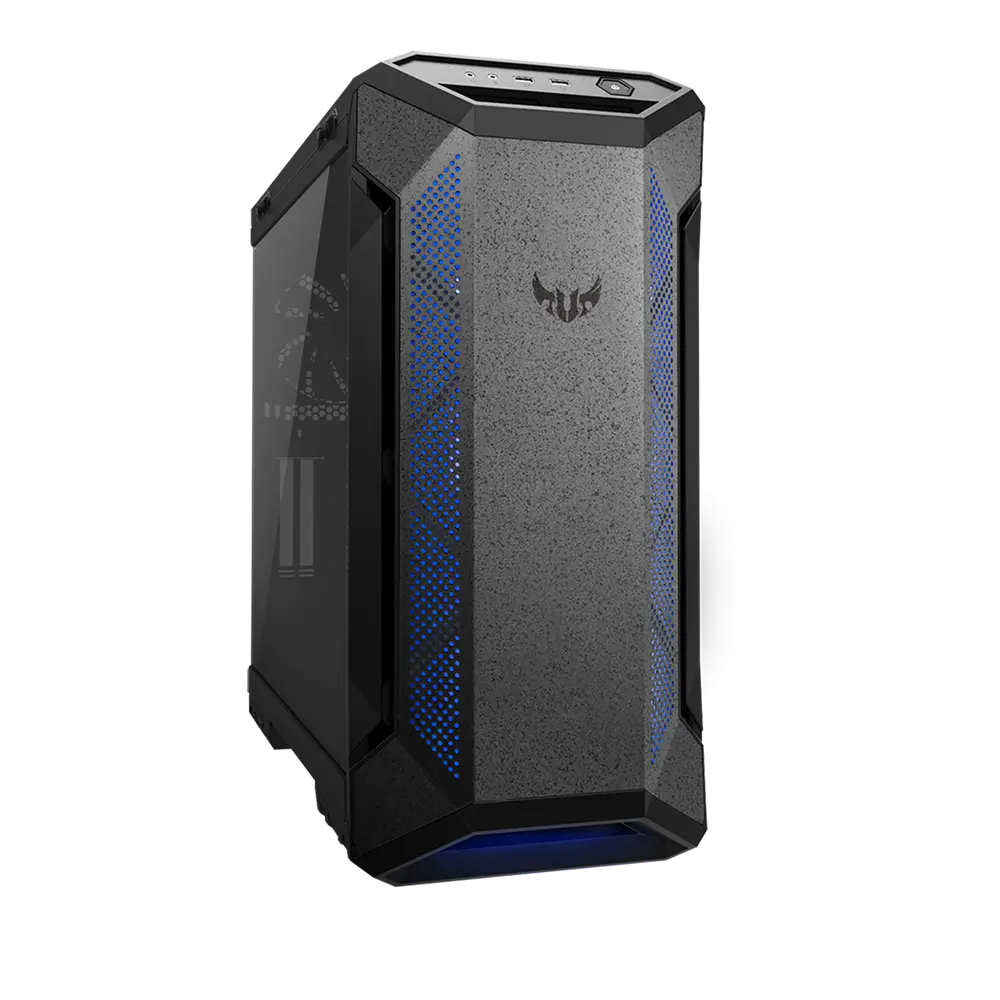

- The ASUS TUF Gaming GT501 Mid Tower Cabinet features metal front panel with custom TUF Gaming spatter pattern with sleek aggressive air intake design, creating a beautiful aura when the rainbow fans turn on and tempered-glass side panel to showcase your build’s internals.
- Equipped with three 120mm Aura Sync RGB-illuminated fans and supports up to seven fans. It supports up to a 360mm radiator at the front, a 140mm radiator at the rear. It can also accommodate up to 360mm radiator at the top.

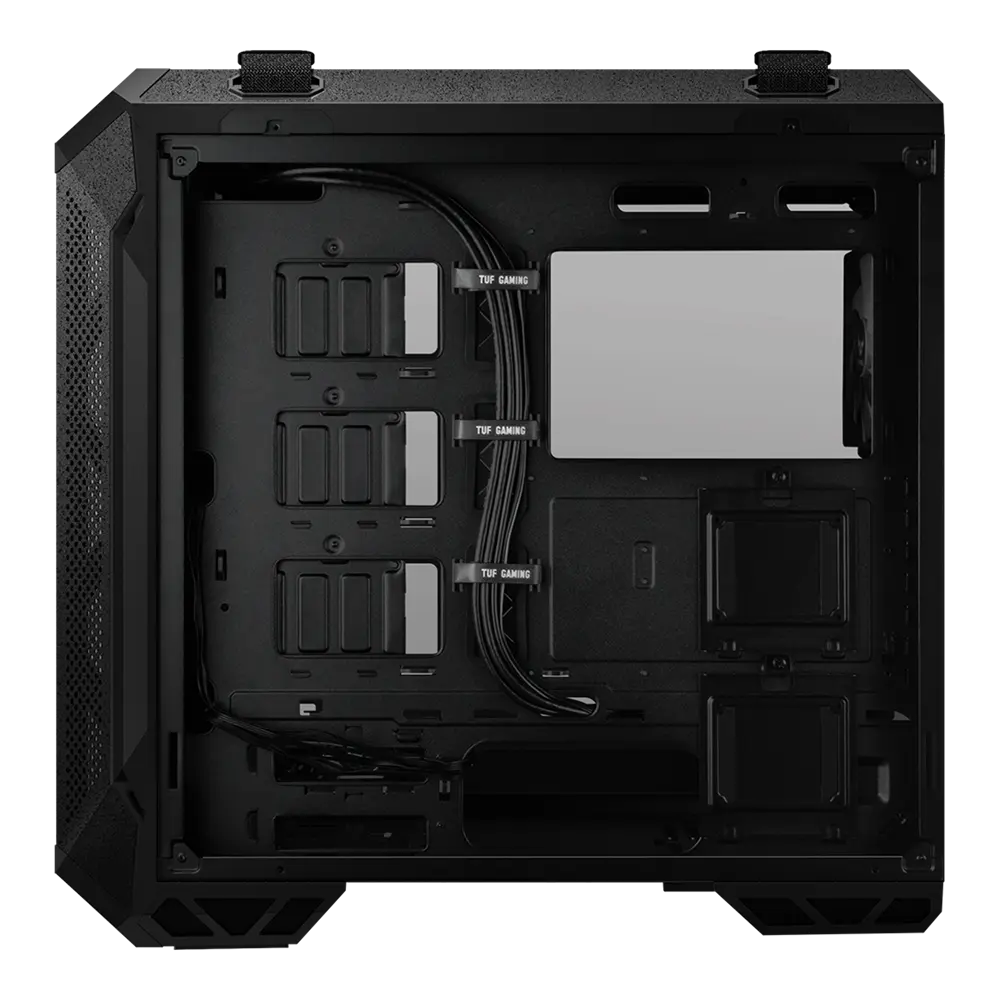

- Accommodate 4 x 2.5 Inch / 3.5 Inch and 3 x 2.5 inch internal drive bays. Fan and cable placement optimized for TUF Gaming gear, and ready for perfect cooling control via our Fan Xpert 4 software.

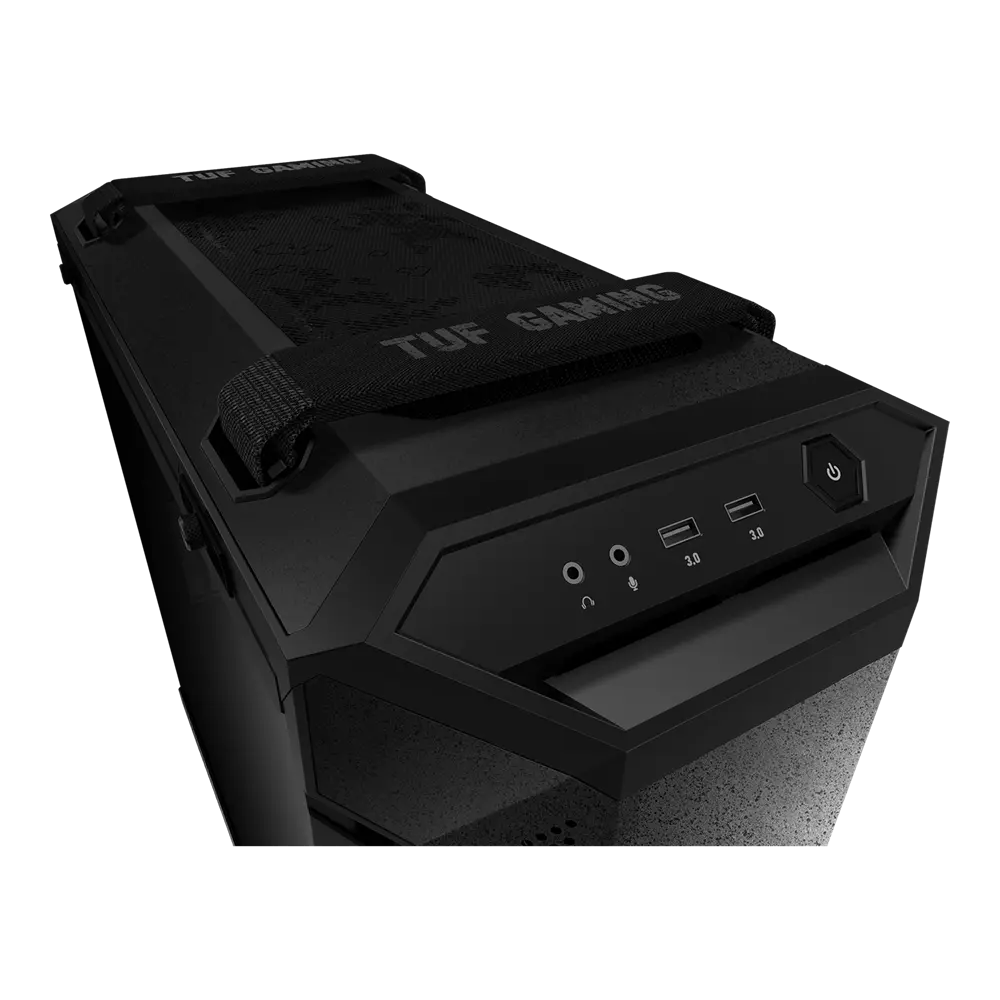

- Front I/O port includes 2 x USB 3.1 Gen1 ports and single 3.5mm audio jack supports most mobile earphones or headphones with MIC. There also support for 1 x microphone port in cabinet.

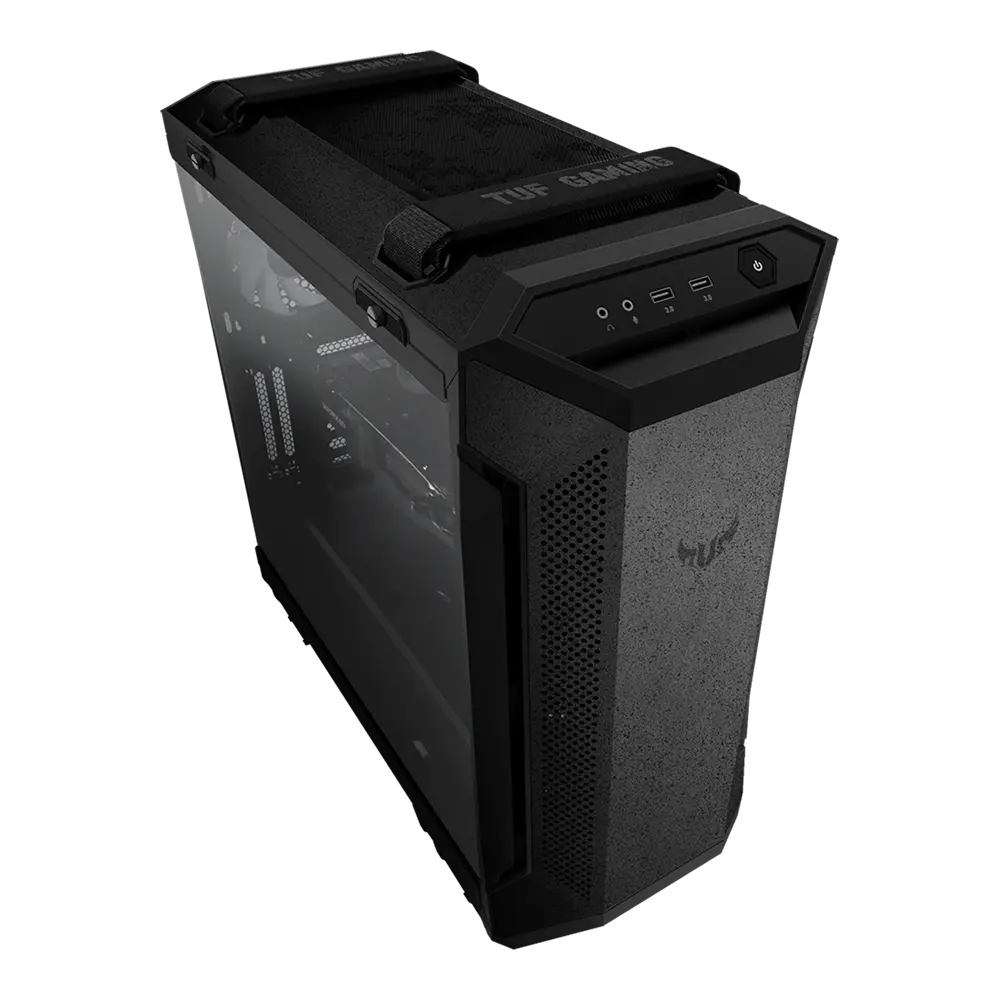

- Comes with Ergonomic, woven-cotton carry handles enable easy and safe transport. Supports CPU cooler of up to 180mm height and graphics card up to 420mm , PSU length of TUF Gaming GT501 is 240mm.
Mordern Cabinet design

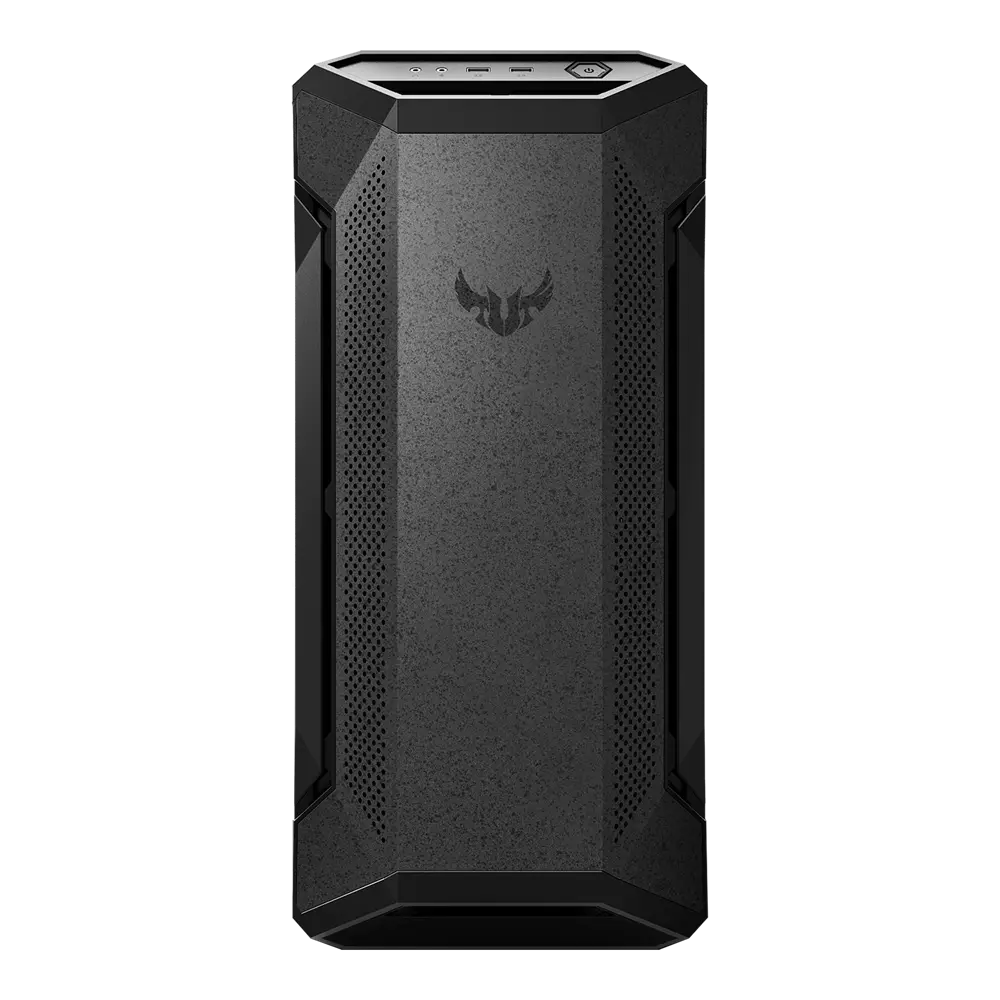

It comes with metal front panel with custom TUF Gaming spatter pattern, and 4mm-thick, smoked, tempered-glass side panel to showcase your build’s internals and have ergonomic, woven-cotton carry handles enable easy and safe transport up to 30Kg.
| Model | TUF Gaming GT501 |
| Dimensions | 64.01 x 65.53 x 33.78 cm |
| Form Factor | Mid Tower |
| Materials | Metal |
| Mainboard Support | ATX, Micro-ATX, Mini-ITX |
| I/O Ports | 1 x Headphone 1 x Microphone 2 x USB 3.1 Gen1 |
| Side Panel | Left Side Tempered Glass panel |
| Expansion & Drive Bays | |
| Expansion Slots | 7 2 (additional vertical) |
| 3.5 Inch / 2.5 Inch | 4 |
| 2.5 Inch | 3 |
| Fan Support | |
| Front | 3 x 120 mm 2 x 140 mm |
| Top | 3 x 120 mm 2 x 140 mm |
| Rear | 1 x 120 mm 1 x 140 mm |
| Included Fan | 1 x 140 mm PWM |
| Fan RGB Effect | Yes |
| Radiator Support | |
| Front | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Top | 120 mm 140 mm 240 mm 280 mm 360 mm |
| Rear | 120 mm 140 mm |
| Clearance | |
| Max GPU Length | 420mm |
| Max CPU Height | 180mm |
| Max PSU Height | 240mm |
| Miscellaneous | |
| Dust Filters | Front, Top, Bottom |
| Net Weight | 11.9 Kg |
| Warranty | Add info here |
